Abell-Howe Jib Cranes
Abell-Howe Product Line
  • Wall Jibs - Tie Rod Type
  • Wall Jibs - Full Cantilever Type
  • Pillar Jibs - Base Plate Mounted
  • Pillar Jibs - Foundation Mounted
  • Pillar Jibs - Foundation Sleeve Mounted
  • Mast Jibs Type
  • Motor Jibs
Contact ProservCrane Group today.
We can help you design the best
jib crane for your business.

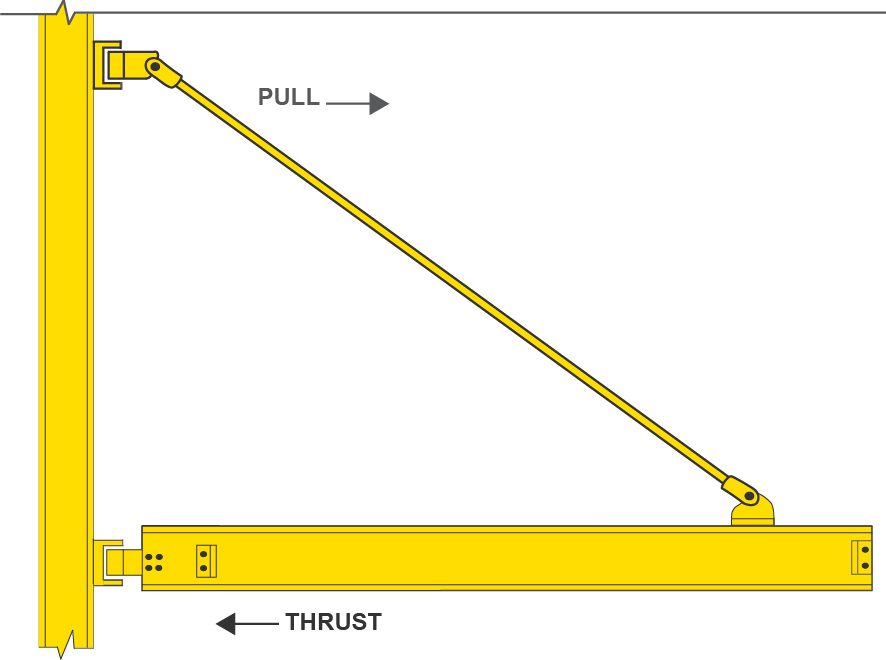

Wall Bracket Jib Cranes Tension Rod
  • I-beam for hoist/trolley
  • A threaded tension rod with clevis fittings and two hinge fittings with bronze bushings for mounting at wall
  • Capacity up to 10,000 lbs.
  • Standard spans to 30 ft.
Wall Bracket Jib Cranes Tension Rod

Wall Bracket Jib Full Cantilever Type
  • This design affords the greatest hook heights, thus taking advantage of full building height
  • I-beam for hoist/trolley
  • Two hinge fittings with bronze bushings for mounting at wall
  • Capacity up to 10,000 lbs.
  • Standard spans to 20 ft.
Wall Bracket Jib Full Cantilever Type

Pillar Jibs - Base Plate Mounted
  • Capacity up to 30,000 lbs.
  • Standard heights and spans to 30 ft.
  • Rolled steel I beam for the hoist trolley
  • Consists of: Large diameter floor plate, heavy wall pipe, rigid steel plate
    box type head
  • Rotates on a Timken tapered roller bearing and revolves around pillar on a pair of steel rollers equipped with self-aligning roller bearings
Pillar Jibs - Base Plate Mounted

Pillar Jibs - Base Plate Mounted

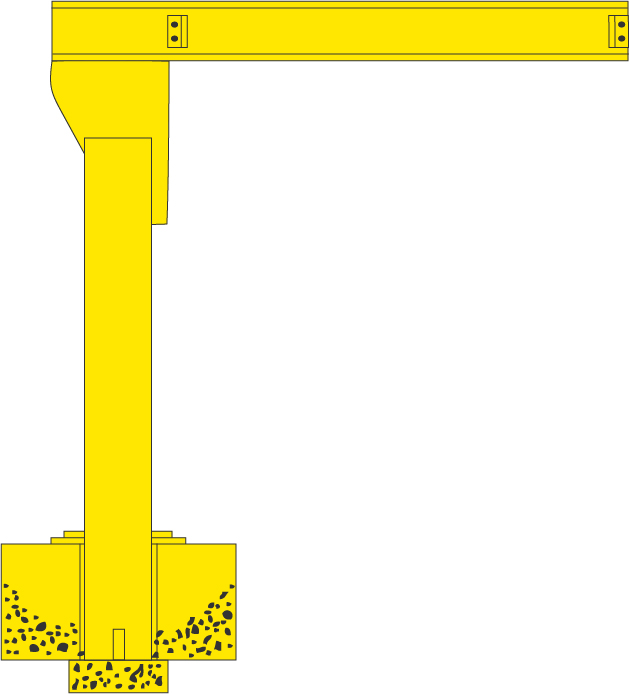

  • Capacity up to 30,000 lbs.
  • Standard heights and spans to 30 ft.
  • Difference between this one and the previous is the column is extended
    into the foundation
  • With the omission of the base plate and gussets more floor space around the pillar is available
  • Rolled steel I beam for the hoist trolley
  • Consists of: heavy wall pipe, rigid steel plate box type head
  • Rotates on a Timken tapered roller bearing and revolves around pillar on a pair of steel rollers equipped with self- aligning roller bearings
Pillar Jibs - Base Plate Mounted

360 Deg Mast Type

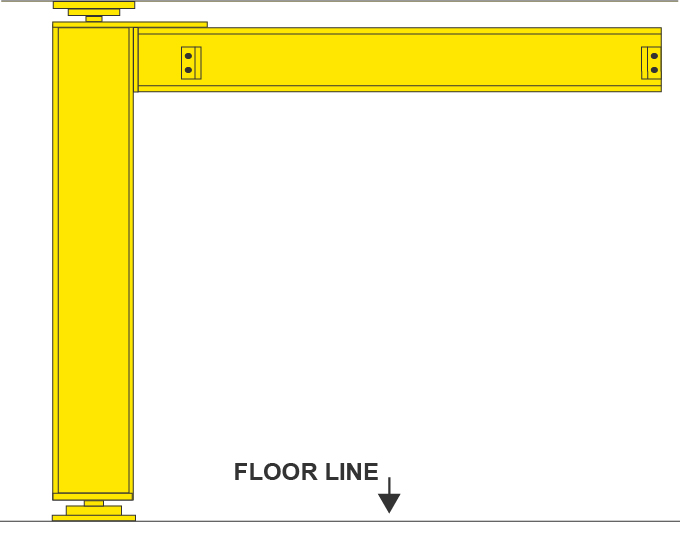

  • Capacity up to 10,000 lbs.
  • Standard heights and spans to 20 ft.
  • Consists of a wide flange mast section, top pivot with self-aligning ball bushing and bottom pivot with oilite bronze bushings
  • 360° rotation at each pivot point
  • This design affords the greatest hook height
360 Deg Mast Type

360 Deg Mast Type

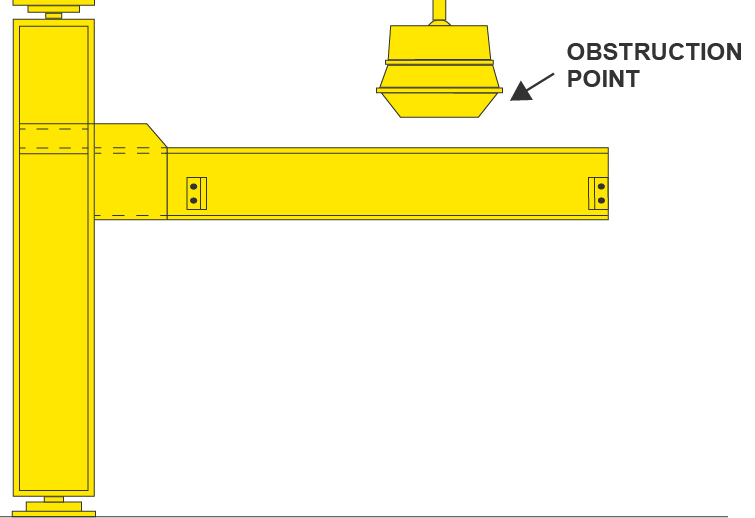

  • Capacity up to 10,000 lbs.
  • Standard heights and spans to 20 ft.
  • Similar to the previous with exception of an optional column/beam connection which allows the beam to be factory mounted at any point on the column
  • Consists of a wide flange mast section, top pivot with self-aligning ball bushing and bottom pivot with oilite bronze bushings
  • 360° rotation at each pivot point
  • This design is useful when obstructions such as overhead ights or pipes may interfere with rotation
360 Deg Mast Type
